Subtech Draincam Inspector Nick Sewer Scope System
Subtech Draincam Inspector Nick Sewer Scope System
For InterNACHI members only!
Subtech Draincam Inspector Nick
from Subtech

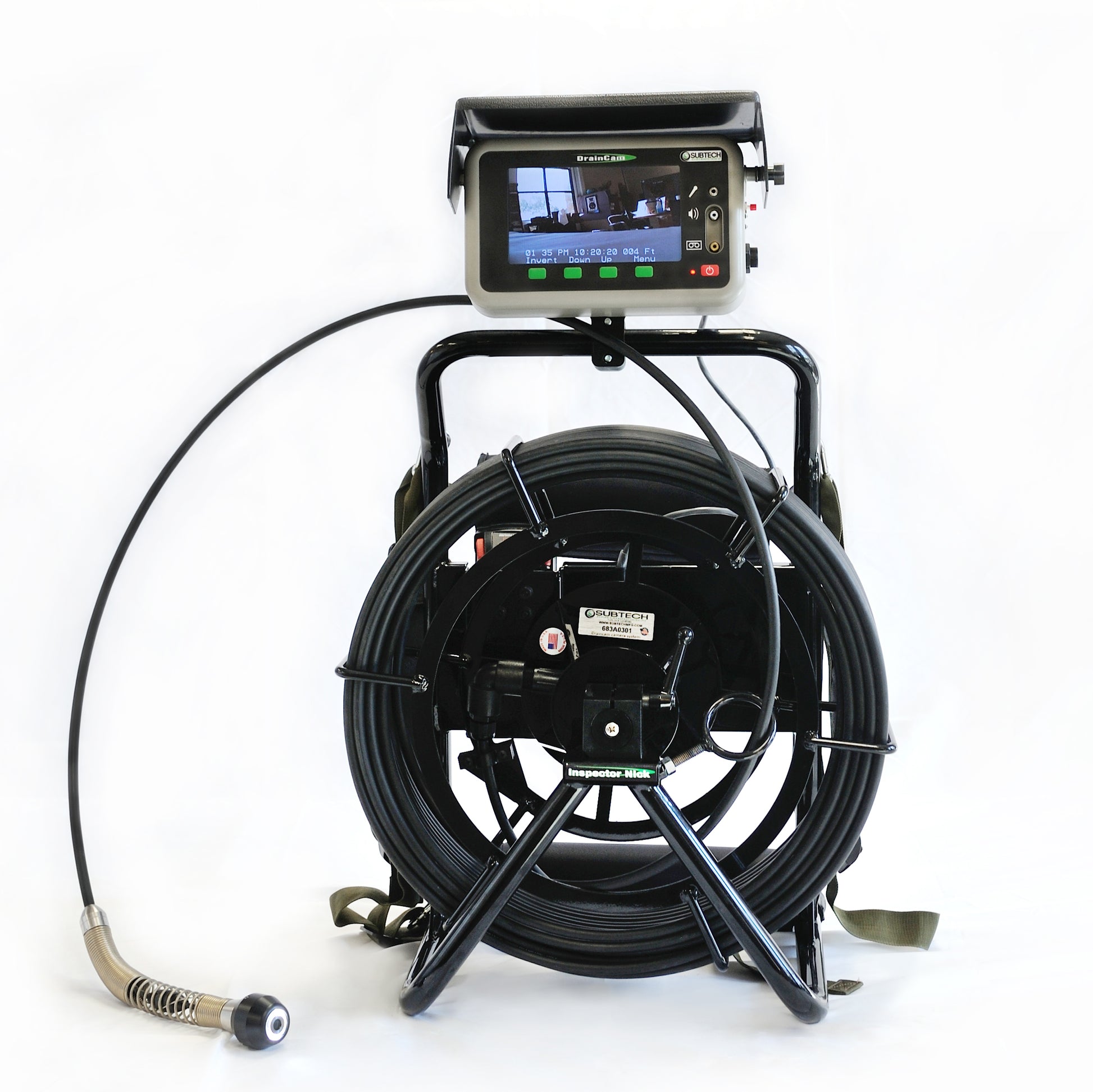

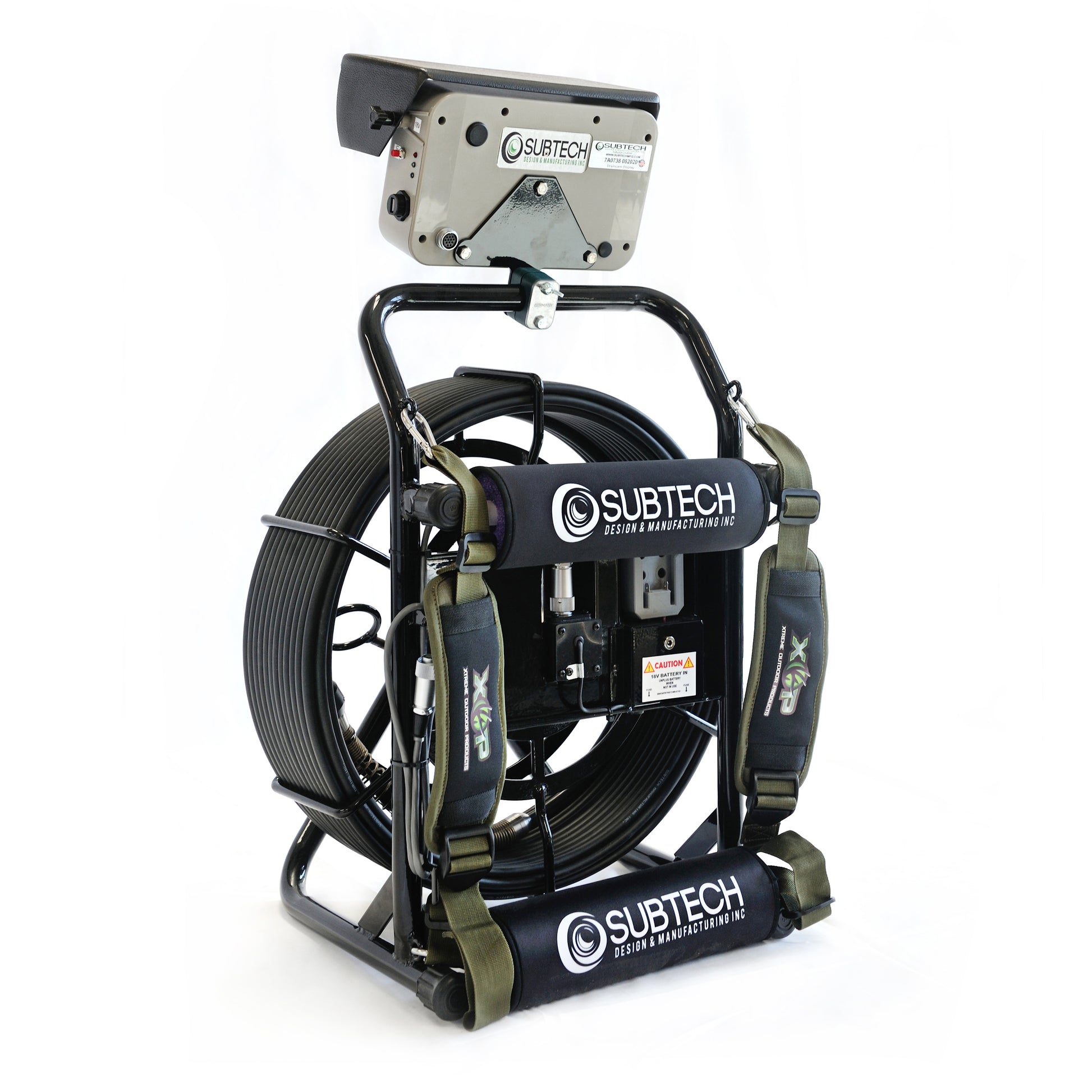

A rugged and durable self-contained camera system designed for the unique needs of the professional Home Inspector (this is the camera used by Colorado's Best Home Inspections, LLC).

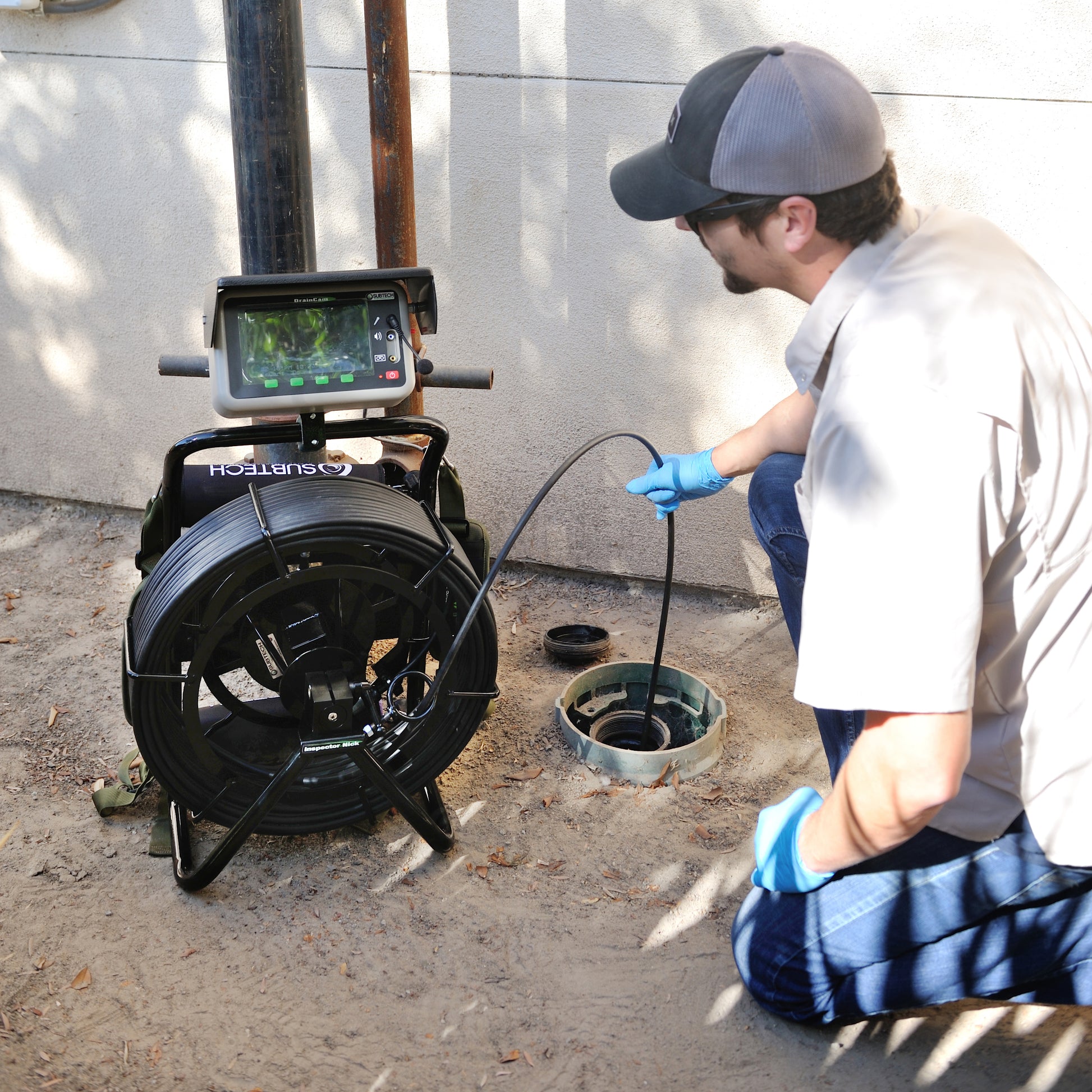

The Inspector Nick Series camera is able to access the main/lateral sewer line from 2, 3, and 4 inch clean outs. This provides multiple options to enable the Home Inspector to perform the sewer scope inspection without needing to remove a toilet.

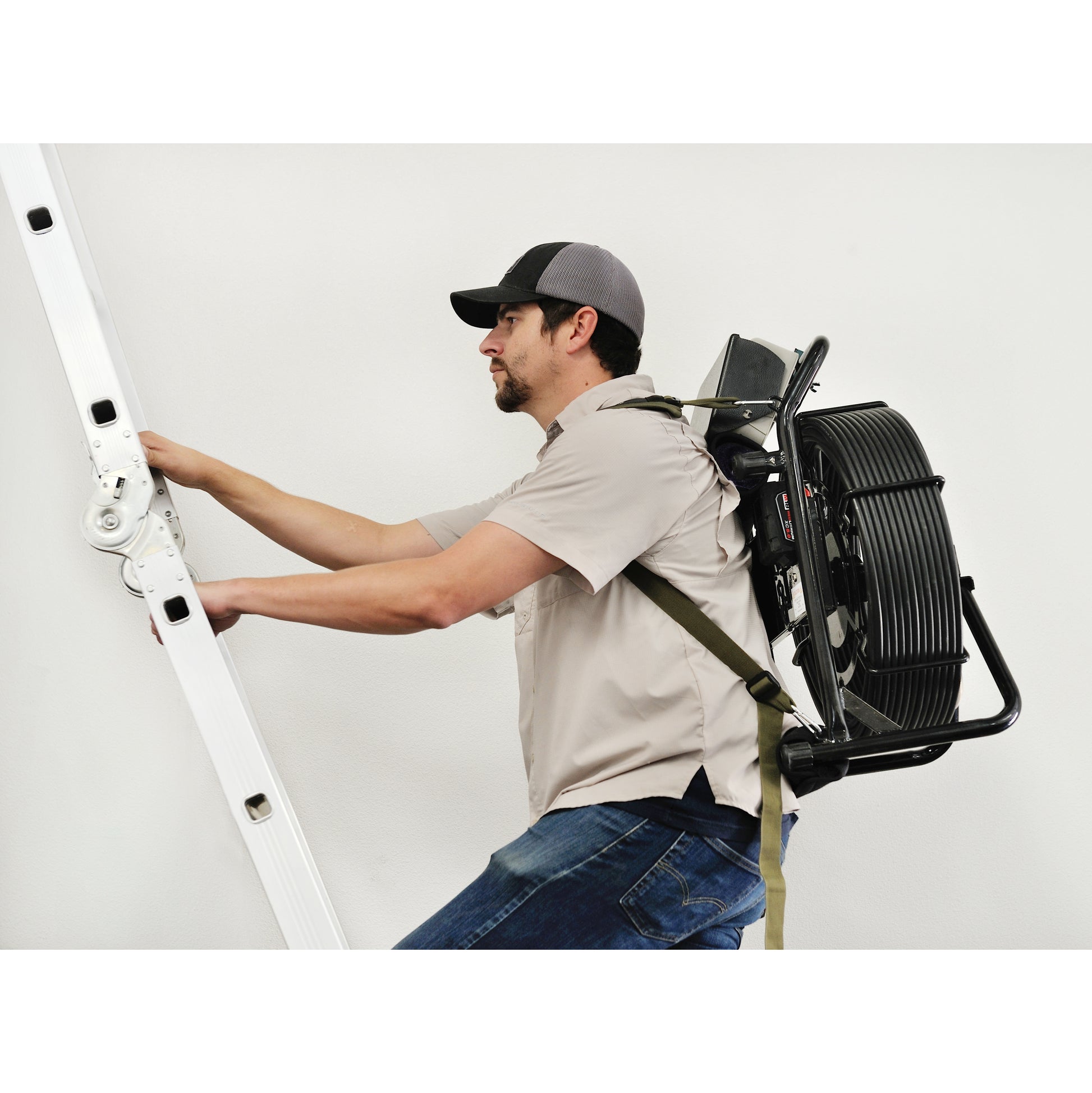

The system's light weight allows the home inspector to safely carry the camera onto the roof or into a crawlspace (built-in backpack strap attachment hooks).
The 140-foot cable (optional 200 foot cable) enables the inspector to reach the city tap at most homes, even if accessing the sewer line from the roof vent.
The self-leveling color camera, 7-inch monitor, and USB recorder provide a crisp, hight quality video.
Built-in counter and Sonde transmitter enable the inspector to locate defects (Sonde used with optional locator receiver).
User replaceable camera head, skid, monitor, and cable.
Standard Equipment
- Professionally Packaged
- Rugged & Durable
- Mini Color Camera

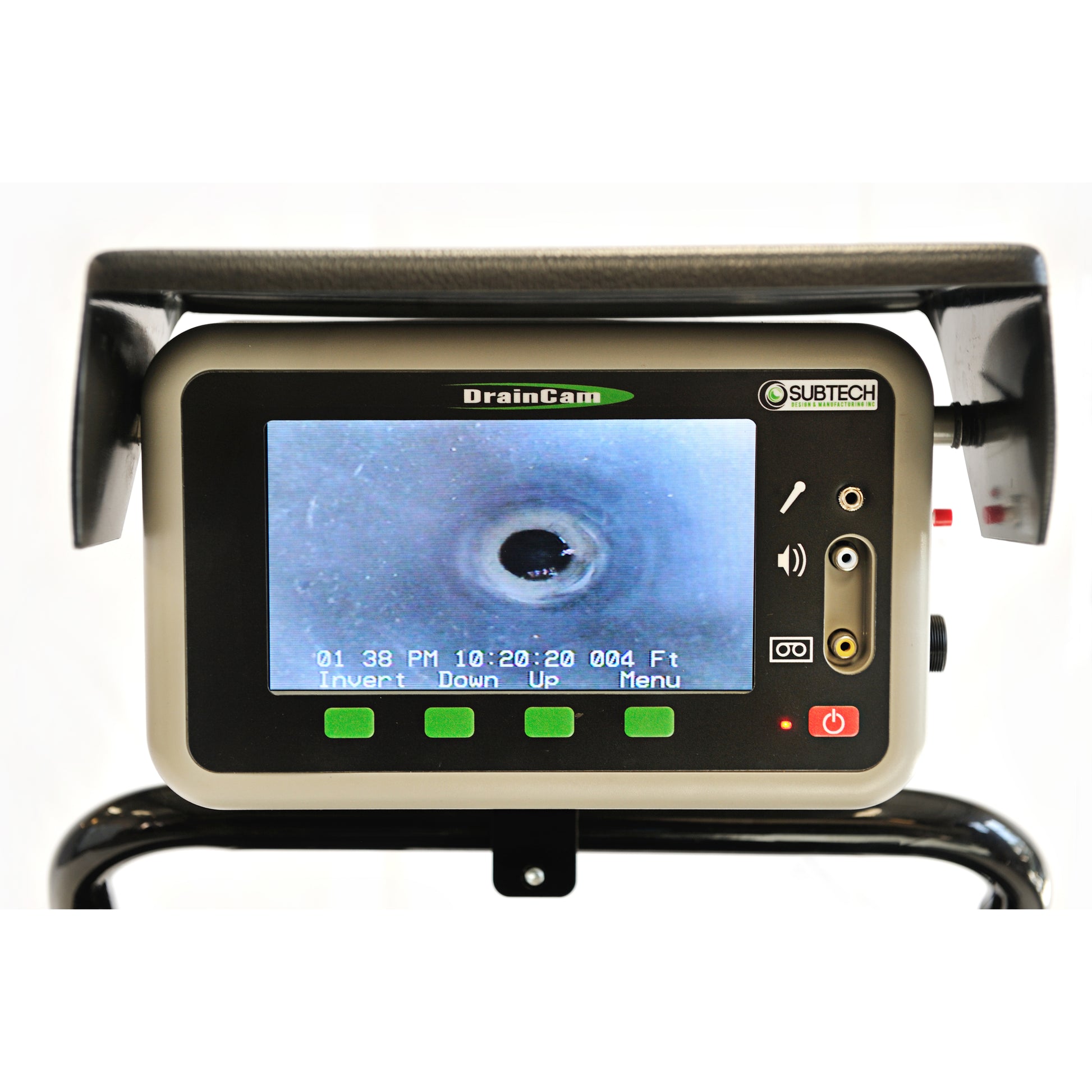

- 7” LCD Command Module
- 512 Hz Built in Transmitter
- Text Writer, Footage Counter, Picture Inverter
- Light Adjustment, Time/Date
- 18 Volt Battery Receptacle (Battery and Charger not included)
- 140′ Pushrod OR 200′ Pushrod
- Built In USB Recorder
- Self Leveling Camera Head

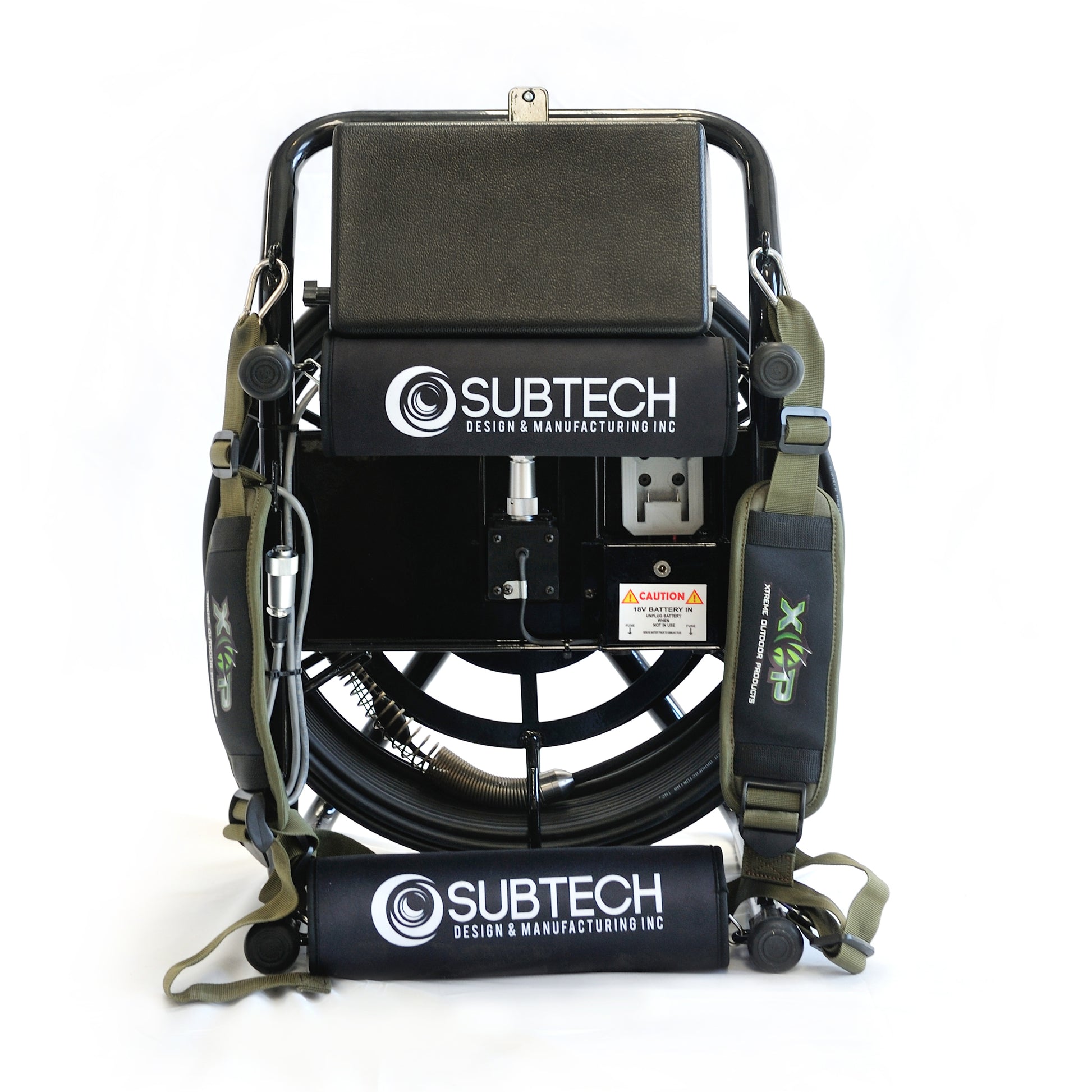

- Backpack Straps
- Microphone
Specifications
- Line Capacity: 1.5″ to 6″
- Max. Distance: 200ft (61m)
- Operating Depth: 350 ft. (150psi)
- Resolution: 420TVL
- Pixels: 512(H) x 492(V)
- Sensitivity: 0.3 Lux
- Lighting: 16 White LED’s
- Camera Dimensions: 1.3 x 2″ (33mm x 50.8mm)
- Push-Rod Diameter: .39″ (9.9mm)
- Video Format: NTSC
- Power: 110v/60hz AC, 12v DC
- Operating Temperature: 14F to 122F/-10C to 50C
Available Options
- Camera Locator Receiver
- Wifi to Phone or Tablet
Battery connection works with the Milwaukee 18v batteries.
Financing available through PayPal Credit! Please click here to contact us about it.
