Inspector Cameras
Scout 3-Pro Plus
Scout 3-Pro Plus
Couldn't load pickup availability

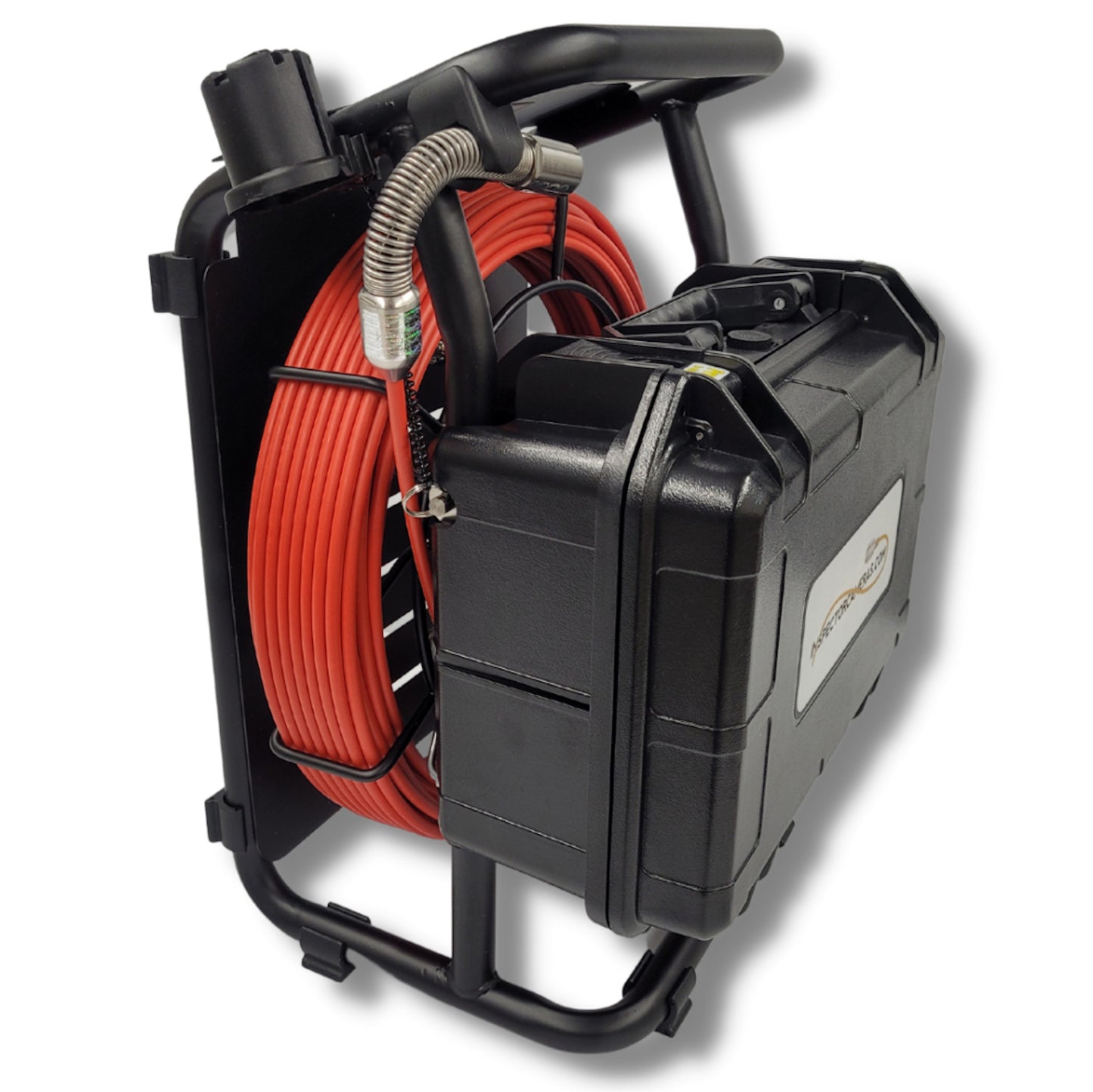

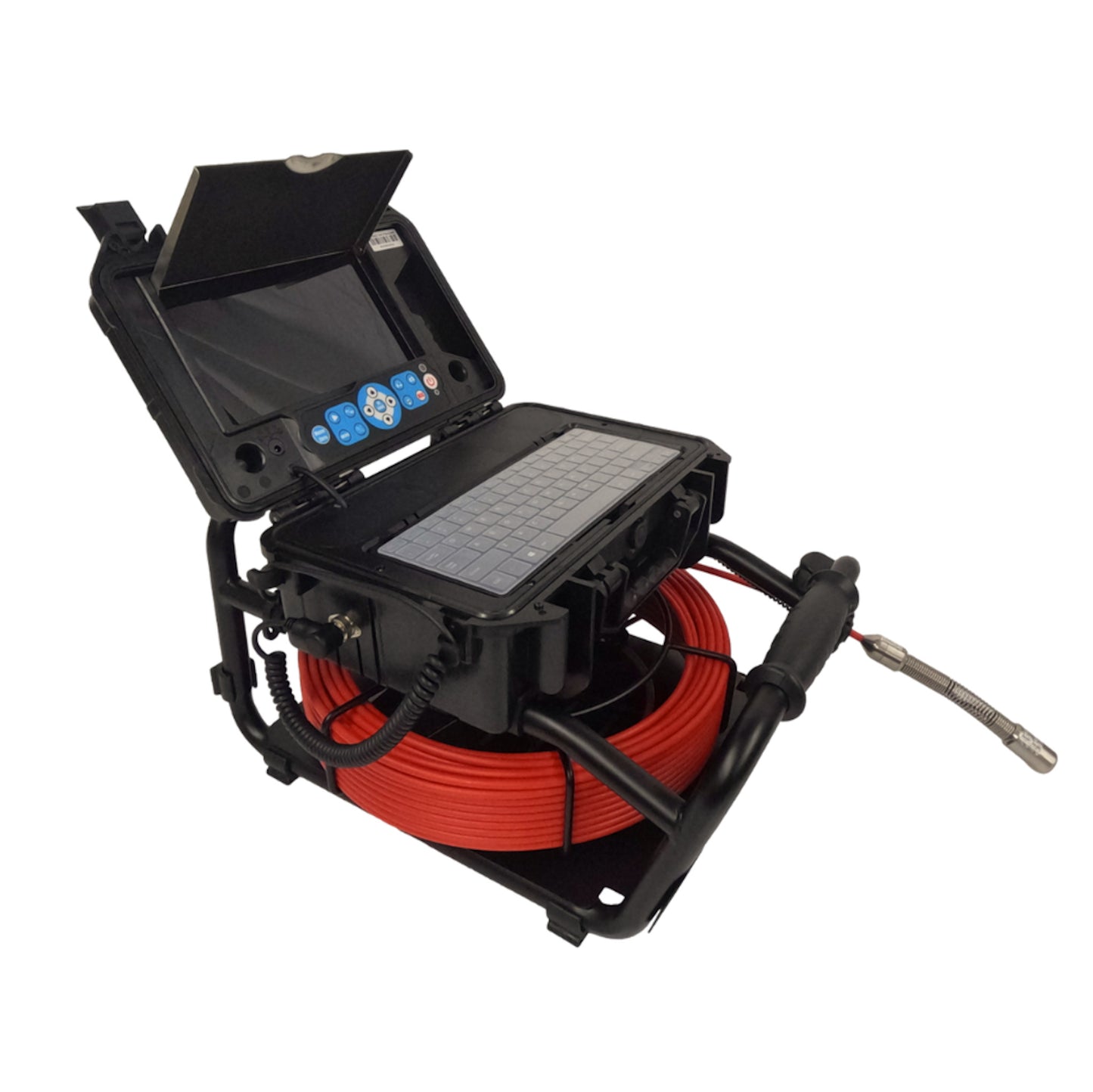

The SCOUT 3-PRO PLUS from Inspector Cameras is a lightweight, easy to carry, rugged, and waterproof inspection camera.* This camera has a standard keyboard, secure internal storage for accessories, and a completely removable control box for limited space areas. The SCOUT 3-PRO PLUS is easy to transport, store, clean, and operate. The camera comes with a set of skids, accessories, and two chargers.
Shipping: $65 Flat Rate to USA, $95 to Canada. (All Canadian taxes and tariffs are the responsibility of the buyer.) Applied in the cart.
*Control box is waterproof with the cover closed.
Specifications

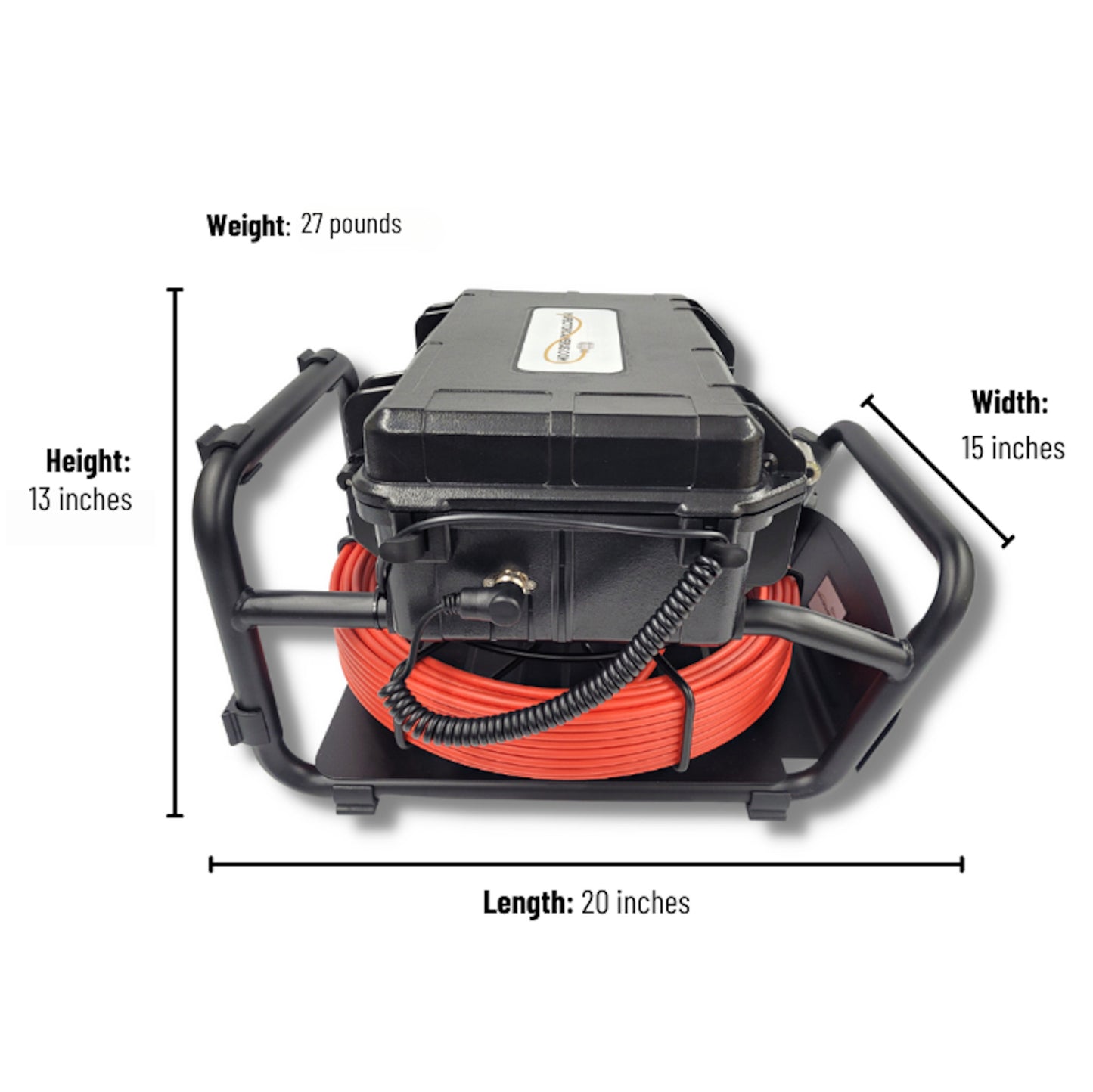

- Weight: 27lbs
- Length: 20 inches
- Width: 15 inches
- Height: 13 inches
- 6.8mm Heavy Duty Cable 40M (130') Cable Length
- Stainless Steel 23mm (1") Camera Head
- IP 68 Waterproof
- 10" Color Monitor
- Screen Resolution: 1024
- 32GB SD Card Video Recording (MP4 Format) and Images (JPEG)
- Built-in Microphone
- Onscreen Distance Counter with Keyboard
- Rechargeable Battery with Wall and Car Charger Included
- Toolkit with Accessories
- A Set of Skids
- Inspector Cameras Manual
What to Expect
When used properly, the SCOUT 3-PRO Plus inspection camera can withstand the rough environments found in pipes. Any equipment used in these conditions is subject to damage occurring. You can minimize repairs by treating the camera system as a precision piece of equipment.
The most common required repairs are damaged camera heads (used without a protective skid), damaged flex springs, and damaged pushrod cables (kinked or broken).
Camera Head:
Always use the protective skid. Using the camera without the protective skid will eventually cause camera head failure. Damage occurs more rapidly in pipes with a rough interior surface, such as old cast iron pipes.
Push Cable:
The push cable made of fiberglass, is a smaller diameter (6.8mm) than some competing camera systems. The system design allows more flexibility for turns and bends.
If the camera head has stopped moving, do not force the push rod. If you continue to feed the cable into the pipe, the cable will fold upon itself, and damage will occur. Sometimes the cable will kink or completely shear, and hidden damage may not be discovered until another use.
Camera Head Spring:
Always protect the flexible camera head spring if you have to force the spring past a sharp edge, through tree roots, or on a line restriction. Upon retrieval, the spring might catch and be kinked or stretched. In most cases this will require replacement of the camera head.
