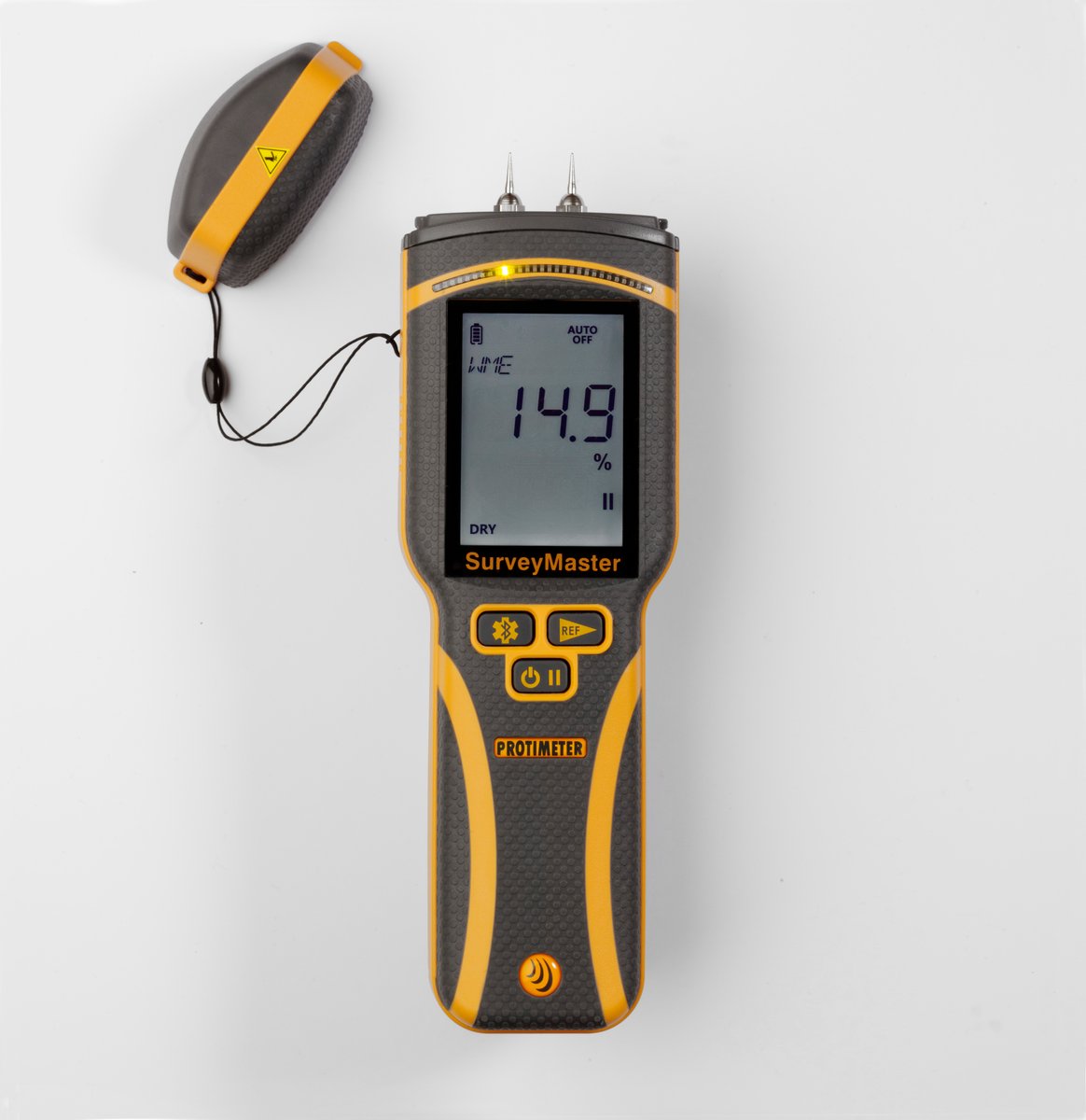

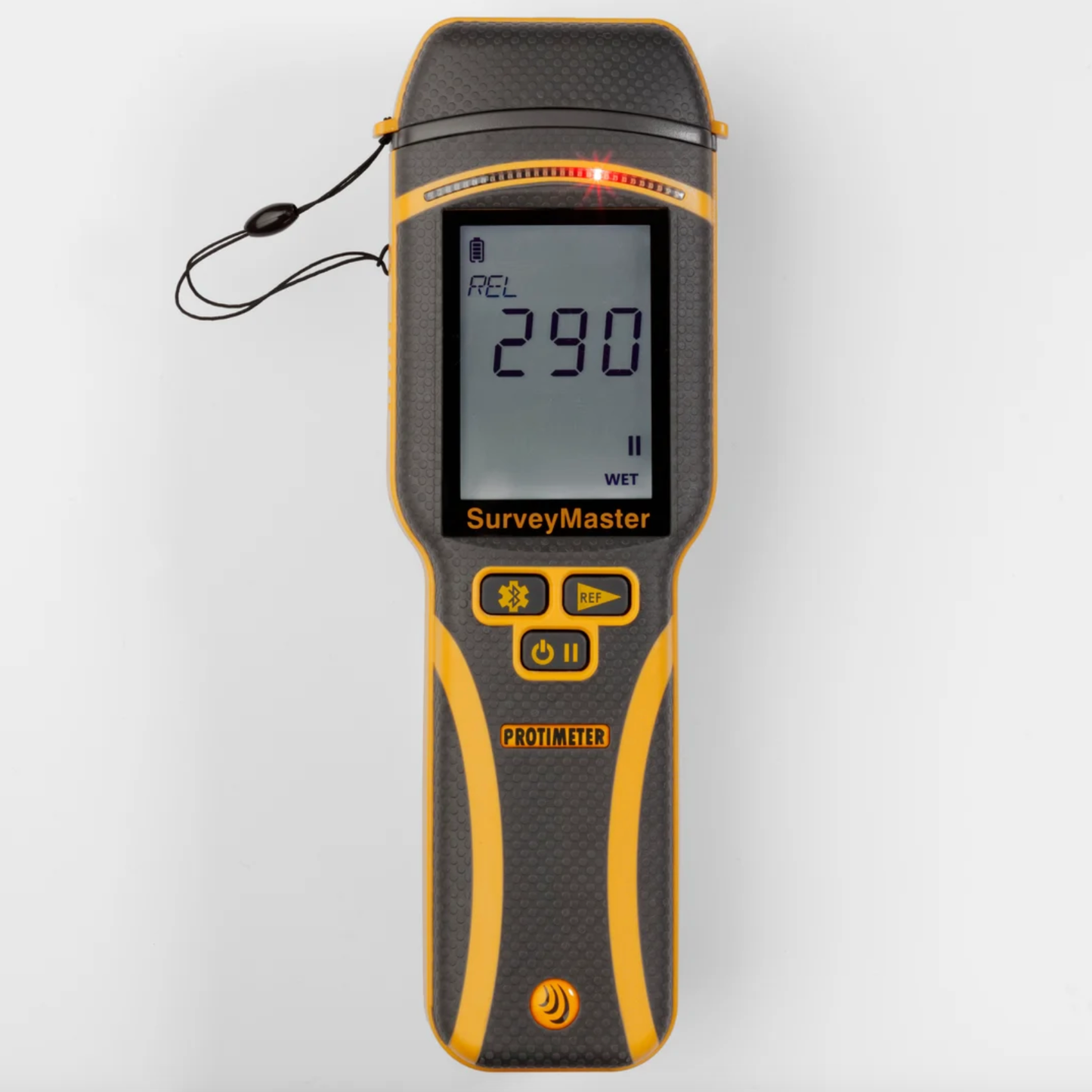

PROTIMETER SurveyMaster® Moisture Meter

InterNACHI Members, please click here for ordering instructions

Protimeter Surveymaster BLD5375

FOR USE WITH:

•Wood •Drywall •Building Materials •Concrete •Fiberglass Boat Hulls

The world's original and best-selling dual-function moisture meter with both pin and non-invasive measurement capabilities.

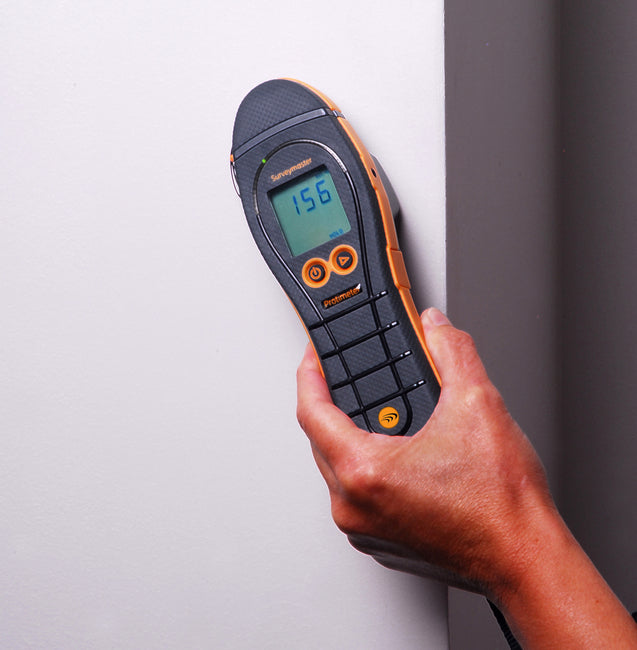

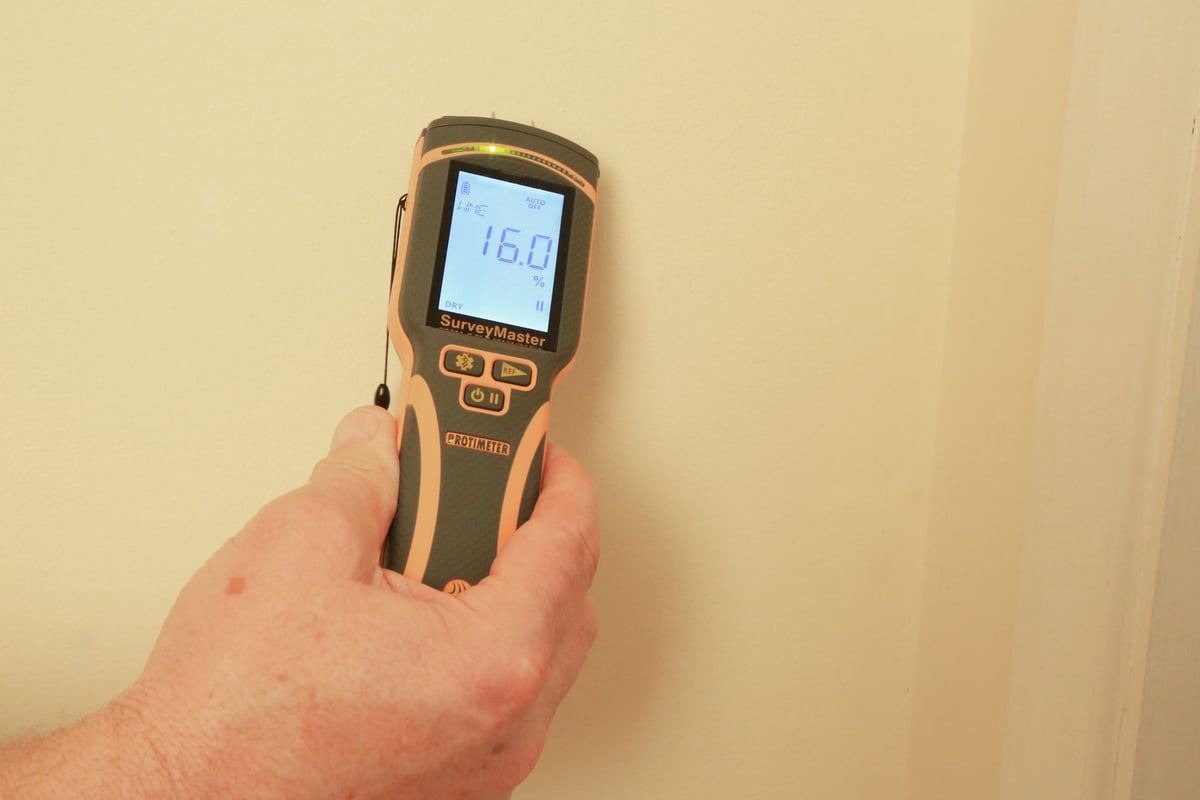

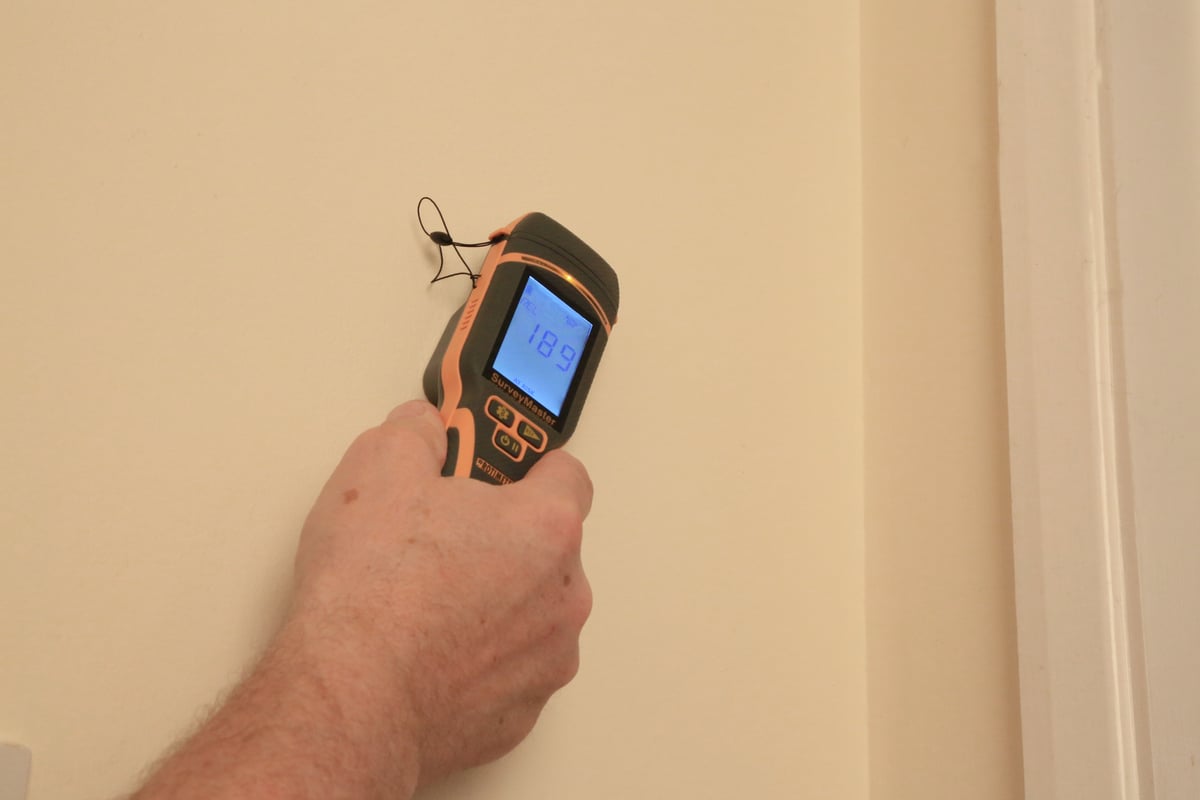

The right moisture meter makes all the difference! And we’ve made even more improvements to enhance the Protimeter Surveymaster. This versatile pin and non-invasive moisture meter is ergonomically designed for easy, one-handed operation to measure moisture in buildings, and other related structures, both on and below the surface. This allows you to assess moisture levels for both new and refurbishing activities, as well as to diagnose moisture-related problems in existing buildings. All Protimeter instruments have a two-year warranty.

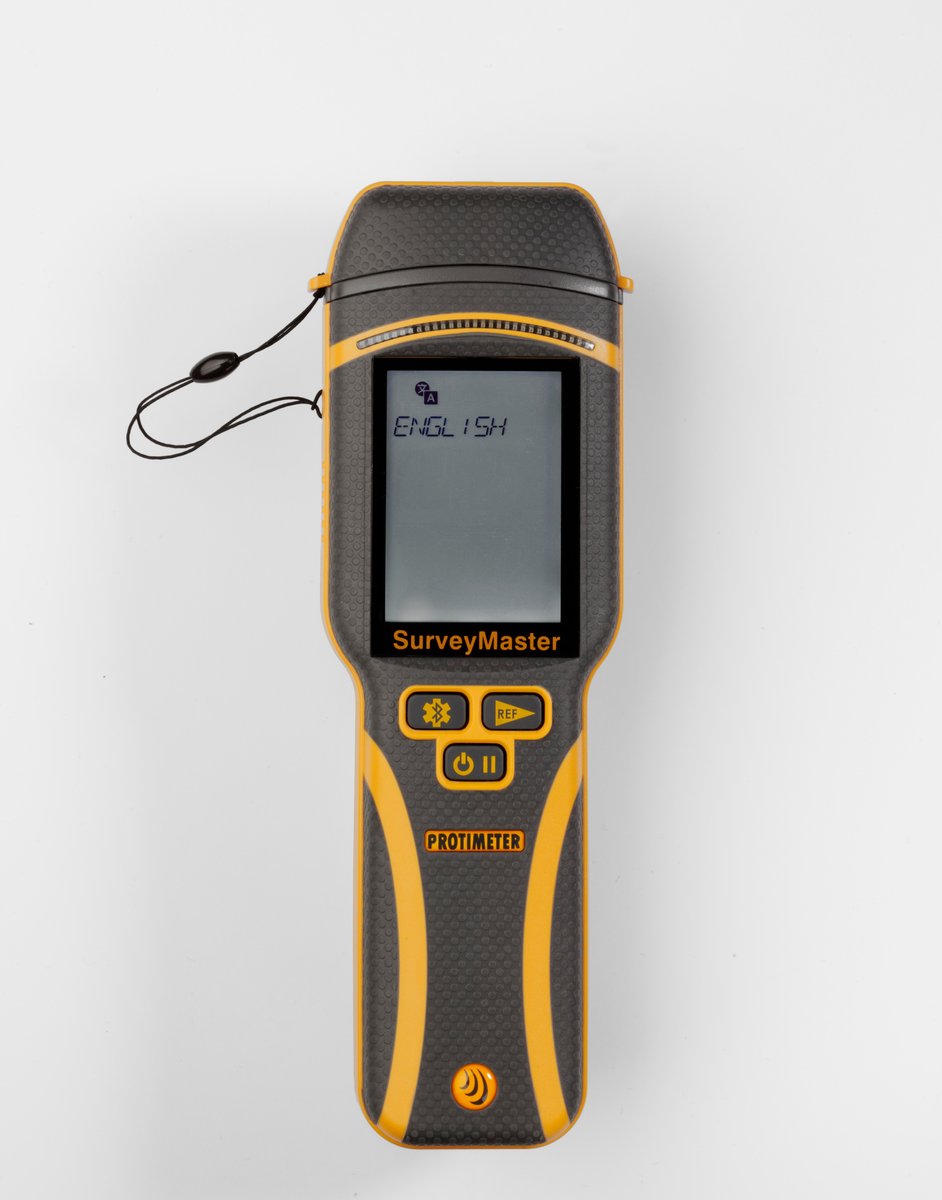

Our new model features a larger display for easy reading, automatic calibration check every 50 power cycles, and user field calibration of the non-invasive mode. Additionally, the batter life is now 3 times longer!

The SurveyMaster moisture meter has Bluetooth capabilities to connect to our Protimeter Connect app. This allows you to save and download readings with the time and date stamp.

All Protimeter instruments have a two-year warranty.

Intro to the new Surveymaster Video

Surveymaster First and Next Generation Comparison

Features

• Rugged construction
• Large backlit display
• Pin moisture measurement
• Non-invasive measurement up to ¾” (20mm) below the surface
• Wide range of accessory plugins
• Industry leading 2-year warranty

Benefits

• Easy-to-use
• Allows rapid assessment of building moisture
• Instant readings in a wide range of building materials
• Non-invasive measurement not adversely affected by surface moisture
• Two meters in one

Applications
When concise and accurate environmental readings need to be reported, the Surveymaster gets the job done. The ability to use both functions to instantly determine the potential evidence of excessive moisture makes this instrument ideal for many applications including:

• Building survey
• Fire and flood construction

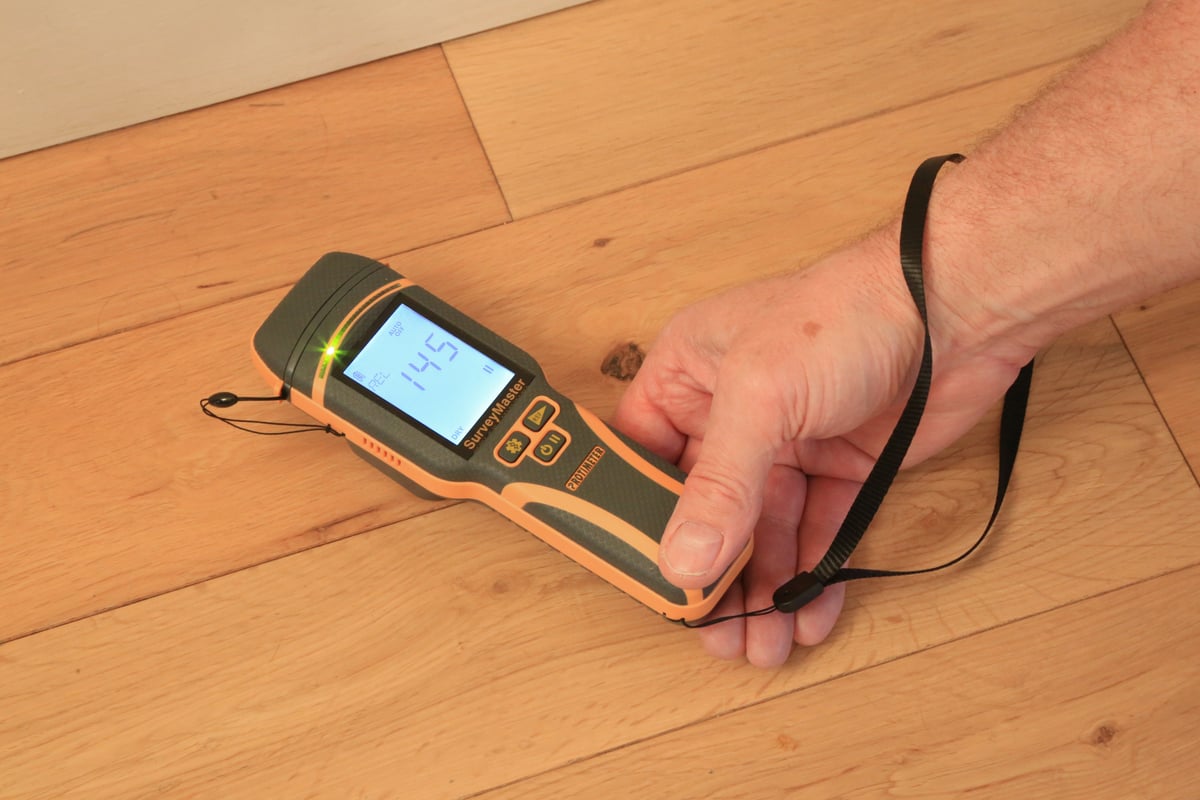

• Concrete and wood floor moisture measurement
• Indoor air quality
• Environmental health

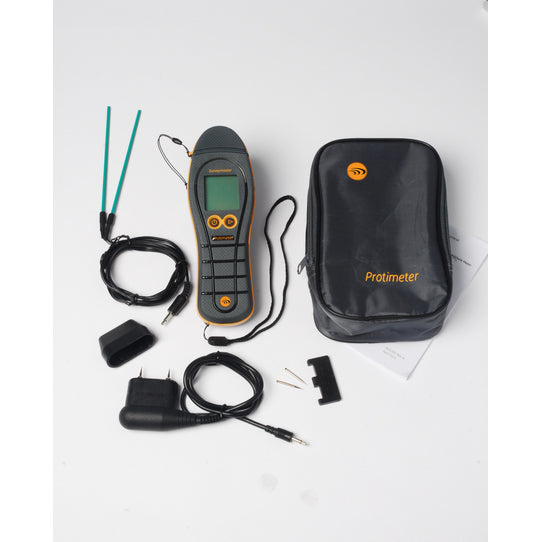

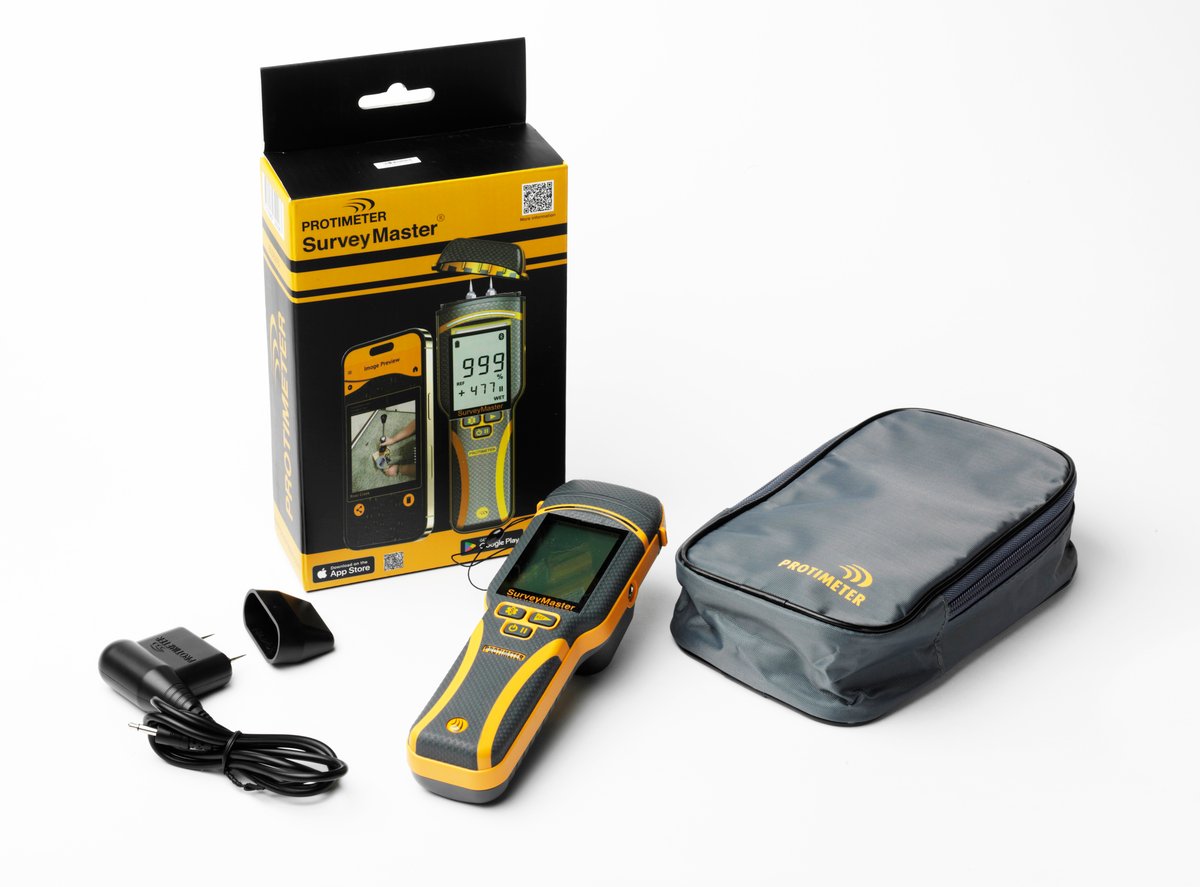

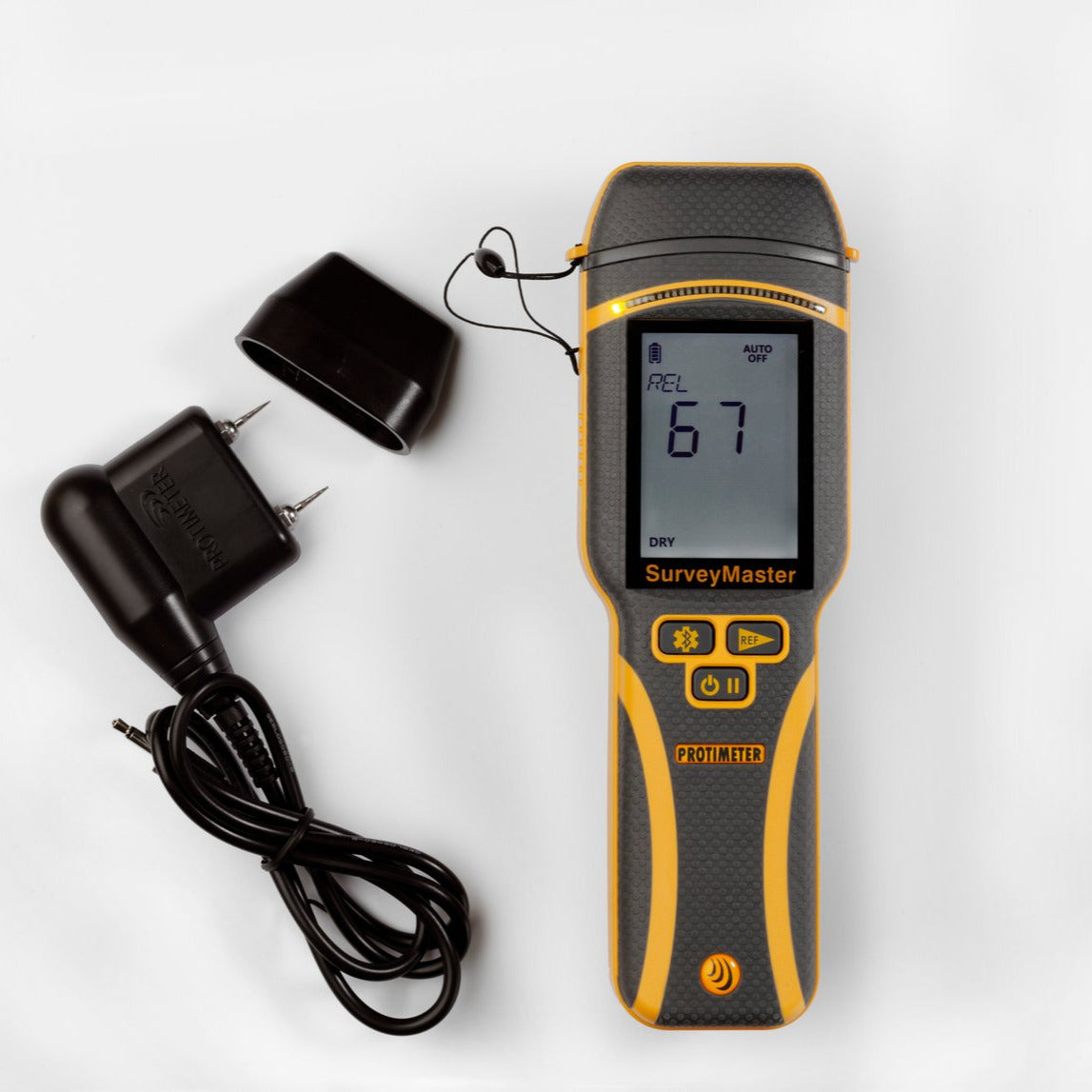

BLD5365 Surveymaster Kit Includes:

• Surveymaster Instrument
• Short Pouch
• HD MC Probe
• Deep Wall Probes 5" (127mm)
• Pin Calibration Check
• Instructions
• Wood Calibration Chart

Specifications
GROSS WEIGHT: Meter with battery 8oz (225gms)
DIMENSIONS (LXWXH): 7.5 in x 2.75 in x 1.9 in (190 mm x 70 mm x 49 mm)
MAXIMUM NEEDLE DEPTH: 0.4 in (10 mm)
DISPLAY: Backlit LCD
BATTERIES (INCLUDED): 1x9V
WARRANTY: 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories.
PINLESS MEASUREMENT RANGE: Non-invasive (RF) up to 3/4 in (19 mm) deep 60 to 1000 (relative)
