Inspector Cameras Explorer LD Sewer Scope

InterNACHI Members, please click here for ordering instructions

The EXPLORER LD has a more rigid cable suitable for pushing longer distances with less cable “snaking” in the pipe. A detachable control box is standard.  This camera is suited for longer underground sewer inspections. It is best for use on 4″ or larger pipes.

The Explorer LD is a heavy duty yellow 6.8mm cable with moderate stiffness.  This cable is best used in pipes 5-to-8-inches but will function in some 3-to-4-inch pipes with sweep elbows.  This cable is designed to push up to 200ft. This cable is too stiff for smaller diameter pipes as passage through elbows is not possible.

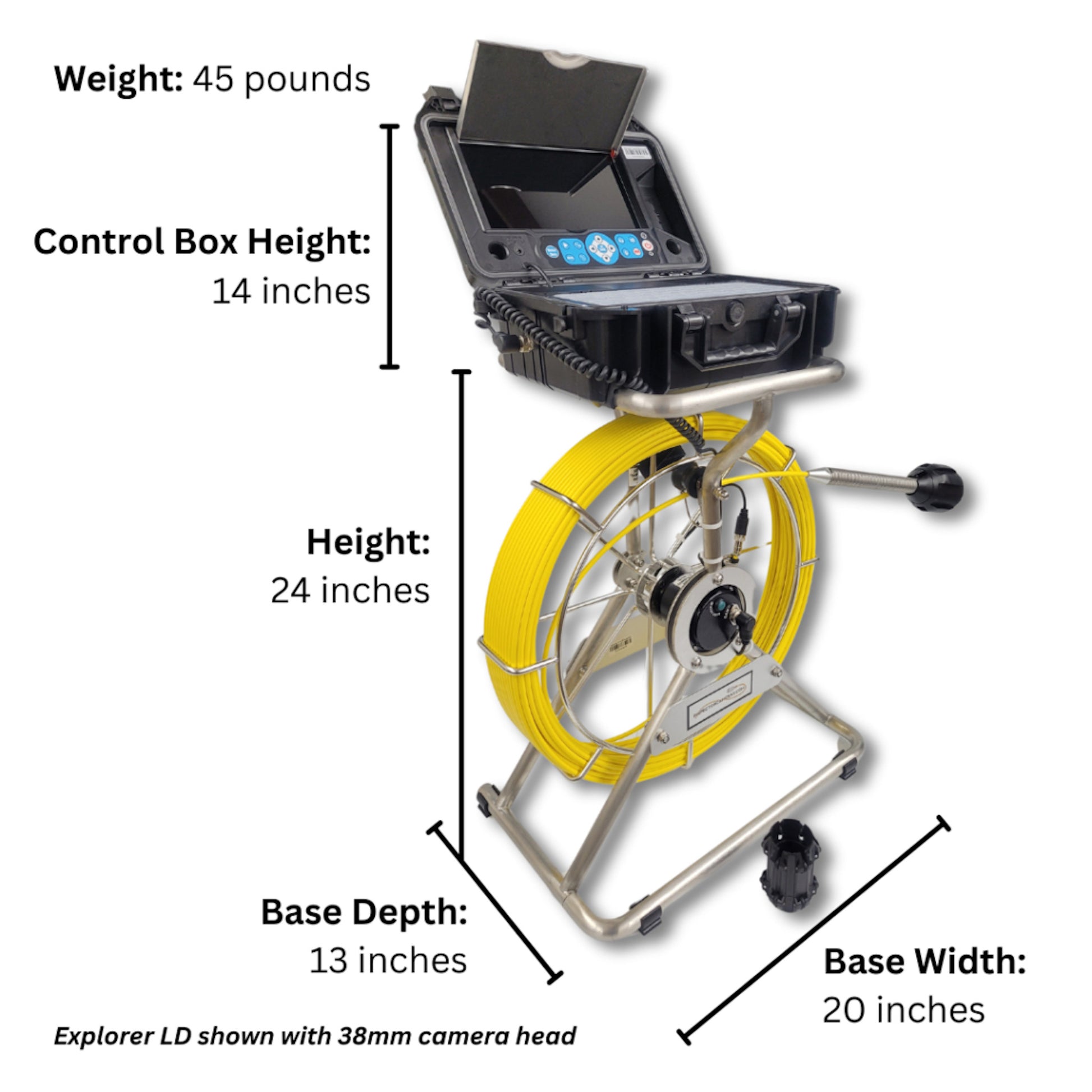

Specifications

• Weight: 45lbs
• Frame Height: 24 inches
• Frame Base: 20" x 13"
• Frame Top: 12" x 13"
• Control Box: 6" in height
• 60m (200') Cable Length
• 6.8mm Heavy Duty Cable

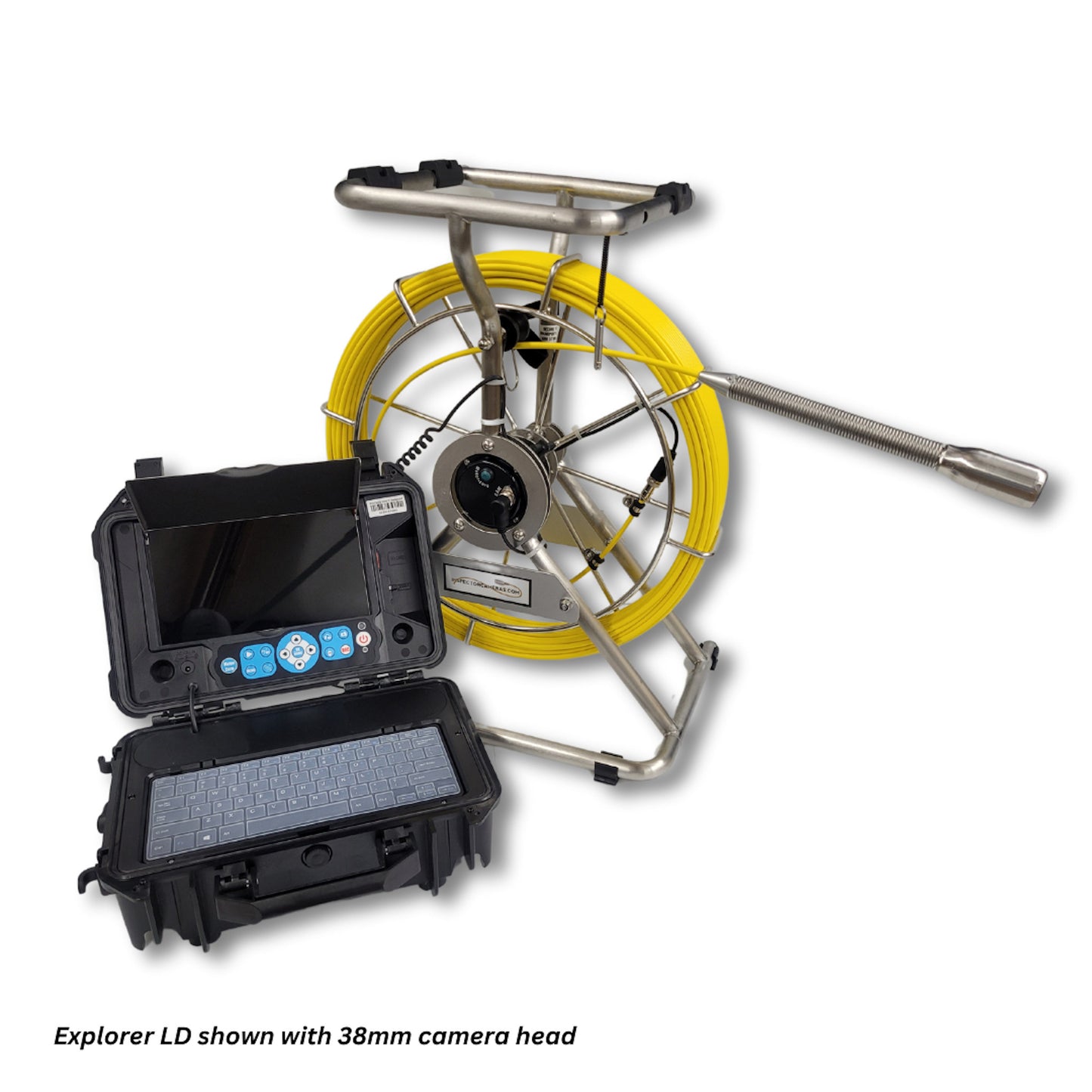

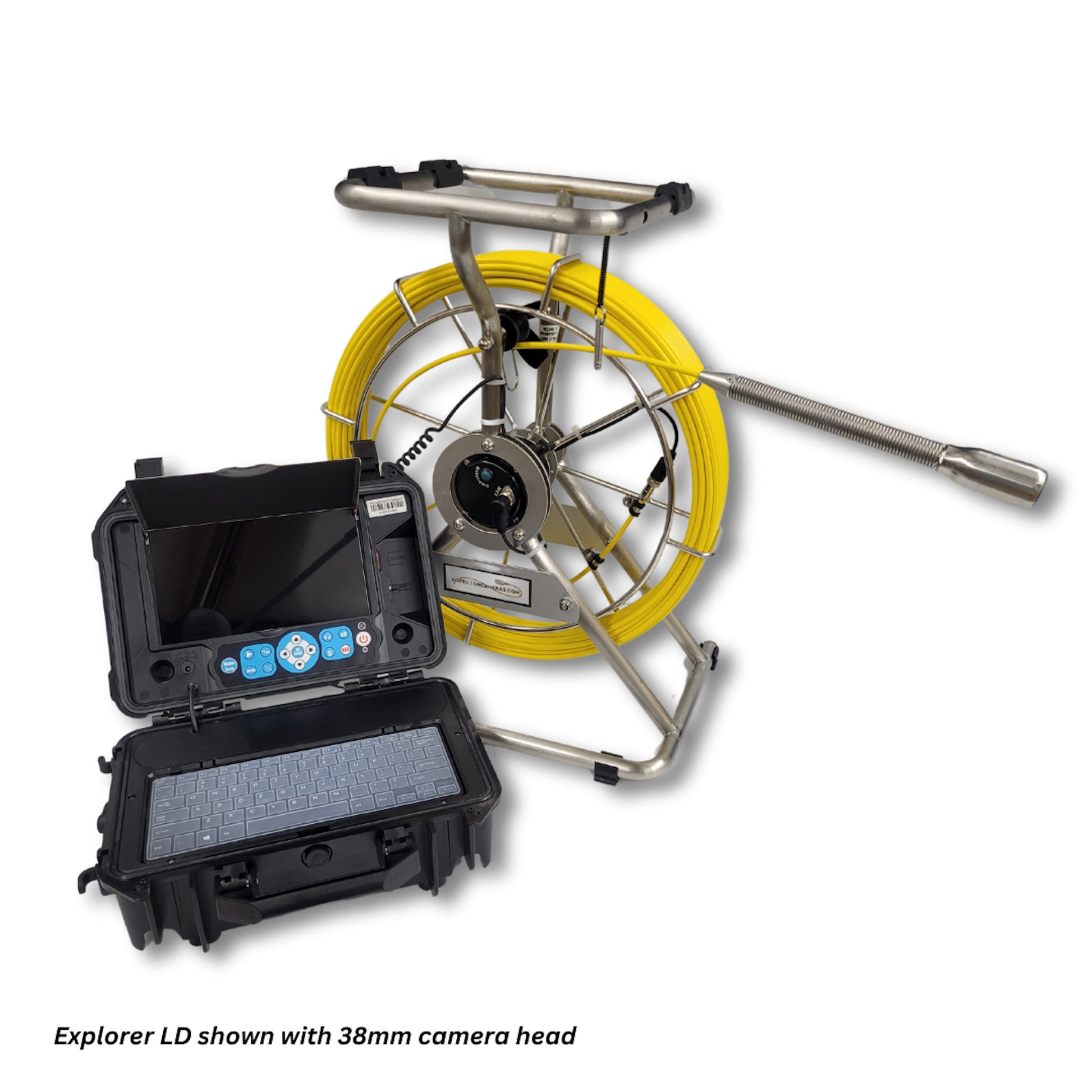

• 38mm (1.5") Stainless Steel Camera Head (if selected) OR

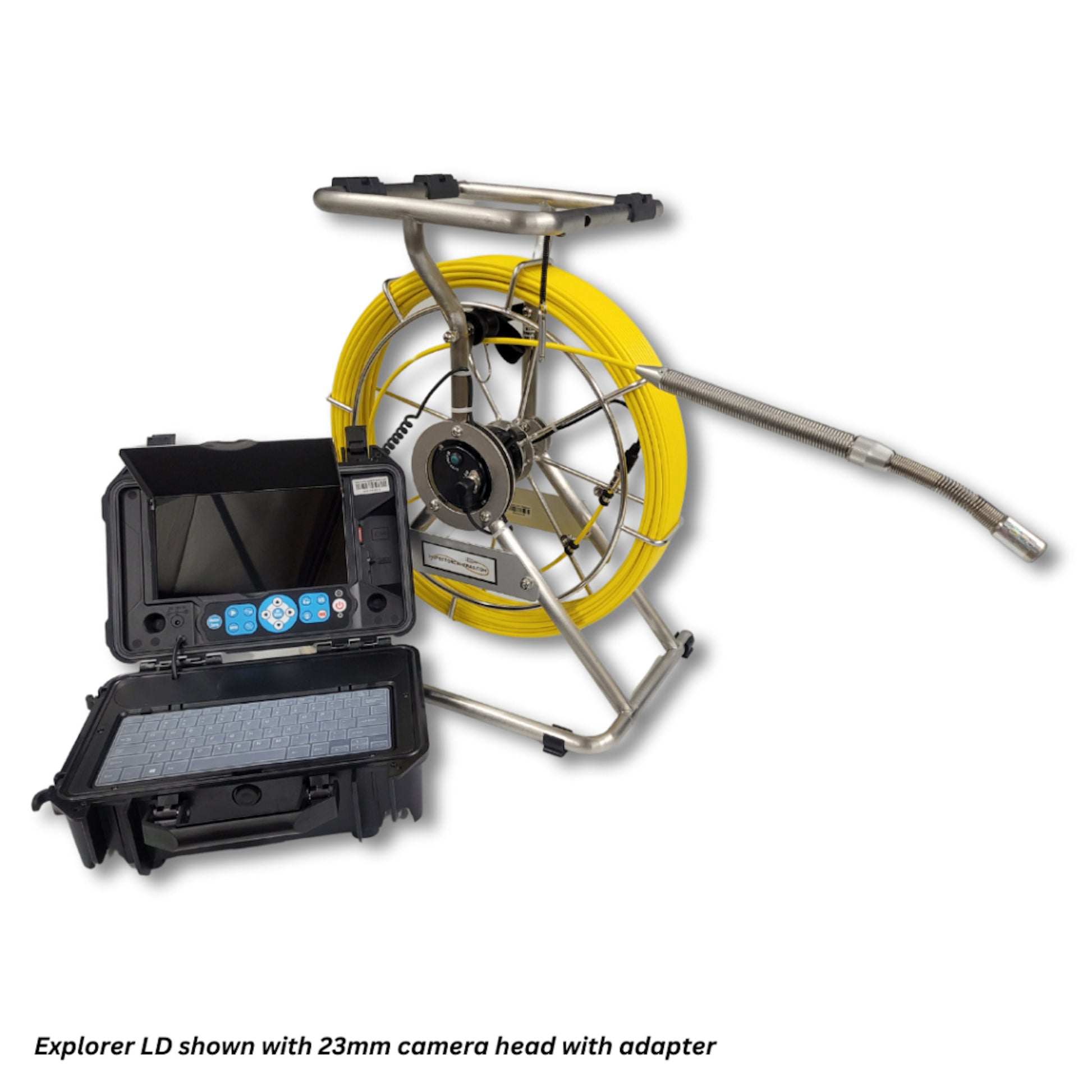

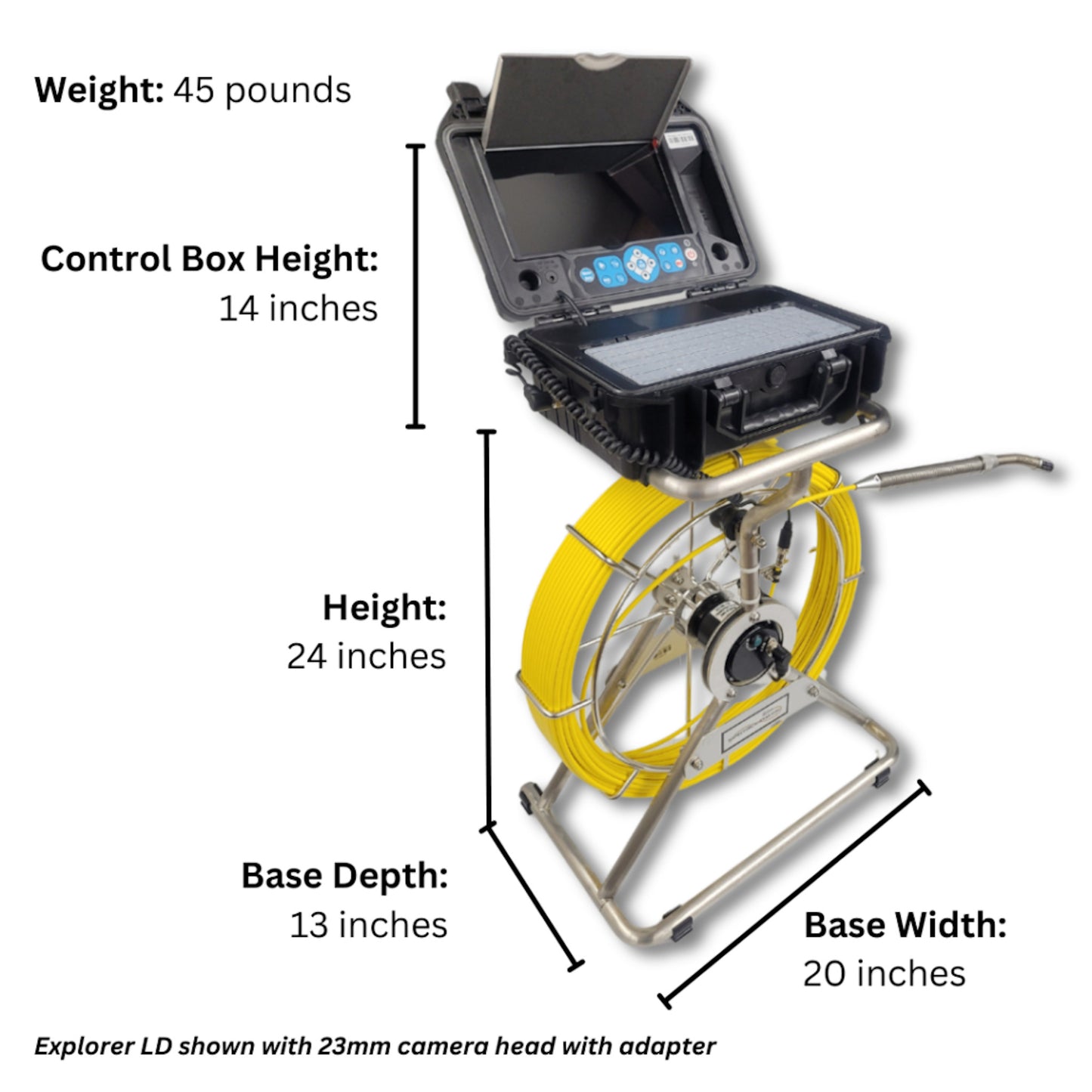

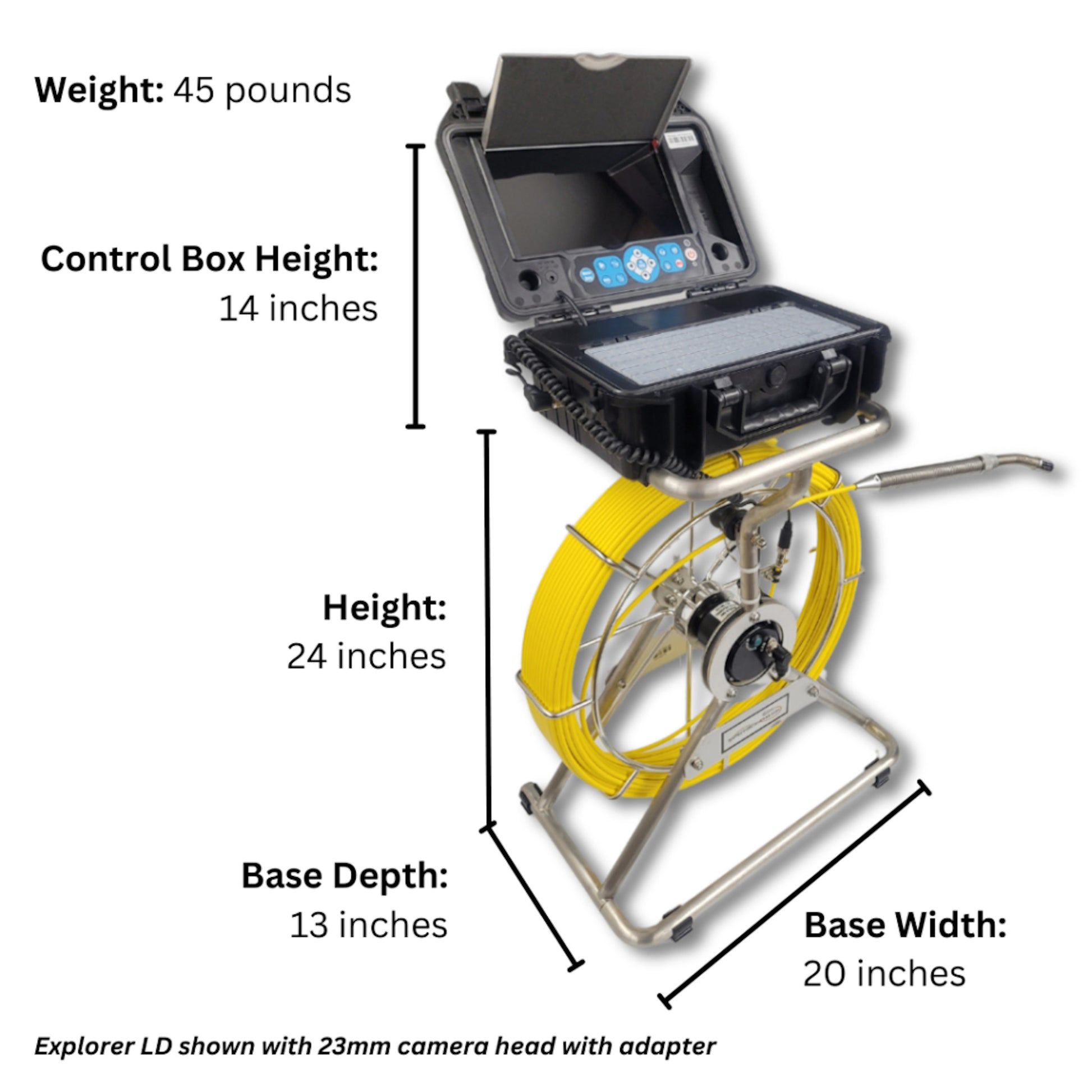

• 23mm (1") Stainless Steel Camera Head with Adapter (if selected)
• IP 68 Waterproof
• 10” Color Monitor
• Up to 32 GB SD Card Video Recording and Images (JPEG File)
• 38mm Full Recording (MP4 File) Onscreen Distance Counter with Keyboard
• 23mm 1080p Full HD Recording (MP4 File) Onscreen Distance Counter with Keyboard
• Built-in Microphone
• Rechargeable Battery with Wall and Car Charger
• Toolkit with Accessories

Warranty & Disclaimer:

Inspector Cameras LLC, provides a limited warranty as specified below to the first purchaser, that should any of its products prove to be defective in materials or workmanship during normal use, within one (1) year from the date of purchase; Inspector Cameras LLC, will, at its exclusive option, repair, replace or exchange the product or any of its parts with new, remanufactured or functional similar components.

What is Not Covered:

Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. Inspector Cameras LLC shall not be responsible for any incidental or consequential damages resulting from the loss of any use of the camera system.

 Our camera systems are used on job sites in the most demanding applications and environments. Under these conditions, the camera system will experience normal wear and tear and likely require maintenance repair service. While normal wear & tear is not considered a “defect” and is not covered by the Limited Warranty, it is our goal to get your camera system back in service a soon as possible. Inspector Cameras LLC offers service, parts and repair by factory trained technicians at our facility in New Hampshire to meet your service needs.

 This warranty does not apply to any camera system or component which has been subjected to accident, negligence, alteration, abuse or misuse. Repair by anyone other than Inspector Cameras LLC or the use of or repair with any parts or components not supplied or furnished by Inspector Cameras LLC will void the limited warranty.

 This warranty does not apply to flex springs, cable rod, LED light rings, o-rings, batteries, skids, or other parts, which are considered consumable. The replacement of these items is part of normal product maintenance.

 Defects in Materials or Workmanship:

It is our experience that a product that fails prematurely due to a manufacturing defect in materials or workmanship, will generally do so very early in the product’s life cycle, often the first or second time the product is used. When returned for inspection, these products are generally found to still be in like new condition and show very little signs of use. It is uncommon for a product that was manufactured with a defect, to function under normal use for more than an initial short period of time. Products that are returned for warranty inspection after previous successful usage are rarely found to have defects in materials or workmanship. The most common demand for service is the result of normal maintenance or wear and tear issues, which are not considered to be a defect in materials or workmanship.

 All transportation charges to and from our location for warranty or service work will be the responsibility of the purchaser. Any damage and loss incurred in connection with the transportation of the camera system or individual components shall be borne by the purchaser.

 No other warranties, guarantees, or liabilities, either implied or expressed, will be the responsibility of Inspector Cameras LLC.

 Inspector Cameras LLC will, at its option, repair or replace without charge to the original purchaser, any part or parts manufactured by it and found, upon examination, to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP if received for such examination within the stated warranty period, which begins on the date of original purchase.

 Return Policy

A camera system is returnable only under the following conditions: The camera must be returned unused in brand new condition with all packaging and manuals included.  A used camera is not returnable.  A decision to return the camera must be approved by Inspector Cameras LLC and we will issue a return authorization number.  A camera can only be returned in the first 15 days after initial delivery.  A 10% restocking fee will apply to all returned equipment.

 Shipping Requirements

To help protect your shipment from theft it is required that all equipment deliveries be accepted and signed for by an adult 21 years of age or older at your location. The email address you supply to us will be used by UPS to notify you of the tracking number.

If you want to have your equipment delivered WITHOUT SIGNATURE, you can waive this requirement by logging onto the UPS tracking website and changing the delivery parameters. You can also redirect the delivery to a local UPS store for pickup at your convenience. Please check your spam box for the UPS notification if you do not receive a notification.
